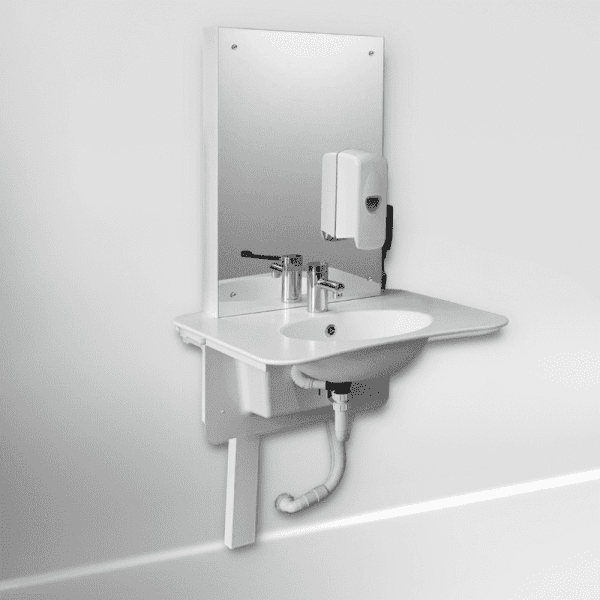

ABW-CP Height Adjustable Wall Mounted Wash Basin for Changing Places

ABW-CP Height Adjustable Wall Mounted Wash Basin for Changing Places

Introducing the ABW-CP Height Adjustable Washbasin, a cutting-edge solution designed to enhance public restrooms and Changing Places Toilets. Crafted with meticulous attention to detail, this innovative wall-mounted sink caters to diverse user needs. Its generously sized basin surround not only offers ample space but also aids wheelchair users in transitioning effortlessly between sitting and standing positions. Engineered for simplicity, the ABW-CP features intuitive handset controls, allowing users to adjust the sink’s height according to their preferences. The integrated mirror, coupled with a conveniently attached soap dispenser, seamlessly moves in tandem with the basin, ensuring optimal comfort.



Constructed from a lightweight yet exceptionally durable Corian-like material, the ABW-CP basin boasts remarkable qualities. Its resilient composition ensures it remains comfortable to the touch, while the nonporous surface guarantees easy maintenance and cleaning, making it an ideal choice for both residential and high-traffic public environments. Deliberately designed with user convenience in mind, the sink’s spacious under-basin area conceals plumbing discreetly, promoting a tidy aesthetic that complements any setting and accommodates various wheelchair styles. Furthermore, the incorporation of a safety cut-out mechanism enhances the user experience by providing an extra layer of security during the lowering process. Elevate the standard of public restrooms and inclusive facilities with the ABW-CP Height Adjustable Washbasin – a testament to thoughtful design and unparalleled functionality.

Category:

Description

The ABW-CP height adjustable washbasin has been developed for public use and Changing Places Toilets.

  • Designed for Public use and Changing Places Toilets
  • Integrated height adjusting mirror and soap dispenser
  • Single lever TMV3 tap
  •  Handset controlled features





Features

Standard Features:

  • Height adjustable 570 mm – 1020 mm (450 mm)
  • Handset operation
  • Mains operated – battery backup
  • Anti-trap safety cut-out
  • Corian style basin surround
  • 150 mm single mixer lever tap
  • Collison sensor
  • Space under unit for wheelchair access
  • Large mirror soap dispenser attached

Technical Specification

Duty cycle: 10%, Maximum 2 min/18 min
IP Rating: IP X4
Supply voltage: 230V ac
Power: 0.25 KW
Dry weights: 50 kg
A weighted sound emission: <70dB(A)

Technical Drawing
